$759.00/Each

Ships free with Plus

Earn up to $22.77 back (2,277 points)with a Webstaurant Rewards Visa® Credit Card

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Pressure compensating, non-aerating laminar spray provides consistent water flow
  • User-adjustable temperature control handle
  • Wall mounting saves space and allows for easy maintenance
  • High-quality, polished chrome finish
  • Provides a sanitary, touch-free handwashing solution
UPC Code:400016164404

Chicago Faucet Company 116.224.AB.1T Specs

Quantity
1/Each
Shipping Weight
6.56 lb.
Spout Length
5 3/8 Inches
Faucet Width
2 1/2 Inches
Faucet Height
12 Inches
Battery Type
CR-P2
Faucet Centers
Single
Features
ADA Compliant  Bluetooth
Finish
Chrome
Flow Rate
0.5 GPM
Material
Brass
Mounting Holes Required
1 Mounting Hole
Mounting Style
Wall Mounted
Power Type
Battery
Pressure Rating
20 - 125 PSI
Spout Clearance
8 Inches
Spout Type
Gooseneck
Style
Hands Free
Temperature Rating
40 - 140 Degrees Fahrenheit
Type
Touchless Faucets
Water Inlet Size
3/8 Inches

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

Ask your own question!

Chicago Faucet Company 116.224.AB.1T Details

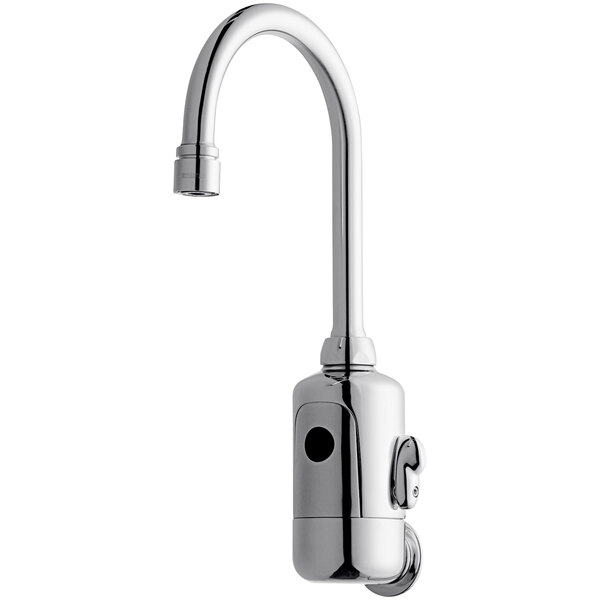

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets 116.224.AB.1T HyTronic wall-mounted single-hole sink faucet. Featuring a 5 1/4" rigid / swing gooseneck spout with a user-adjustable temperature control handle, this item provides an easy-to-use, touch-free handwashing solution for your facility! The touchless infrared system responds quickly to environmental changes and minimizes false activations, saving you money by eliminating the risk of employees or visitors leaving the water running. This feature not only prevents water waste and reduces the chance of water damage, but also works to improve hygiene and reduce the spread of germs in your facility.

This faucet utilizes a pressure compensating, Econo-Flo, non-aerating laminar spray with 0.5 GPM, which works to create a consistent, gentle flow of water while minimizing splashing. For added versatility, a 1.5 GPM optional insert is included. Developed with the utmost convenience in mind, the wall-mounted design is easy to install and simple to maintain. Plus, to deliver water from your main line to the faucet, this unit includes a flexible water supply hose. Best of all, the electronic components are above-deck, making them easy to access and service. This unit comes with a 6 volt lithium CRP2 battery. Able to withstand daily wear and tear, trust this eye-catching, polished chrome faucet to get the job done right!

Overall Dimensions:
Spout Length: 5 3/8"
Faucet Height: 12"
Faucet Width: 2 1/2"

Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping and cannot be returned. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • CalGreen Compliant

    CalGreen Compliant

    This product is compliant with California's CalGreen Green Building Standards Code.

  • Hands-Free/Touchless

    Hands-Free/Touchless

    This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.
