$313.99/Each

UPC Code:

400010501823

Condition:

New
Shipping:

Usually Ships in 2-4 Weeks

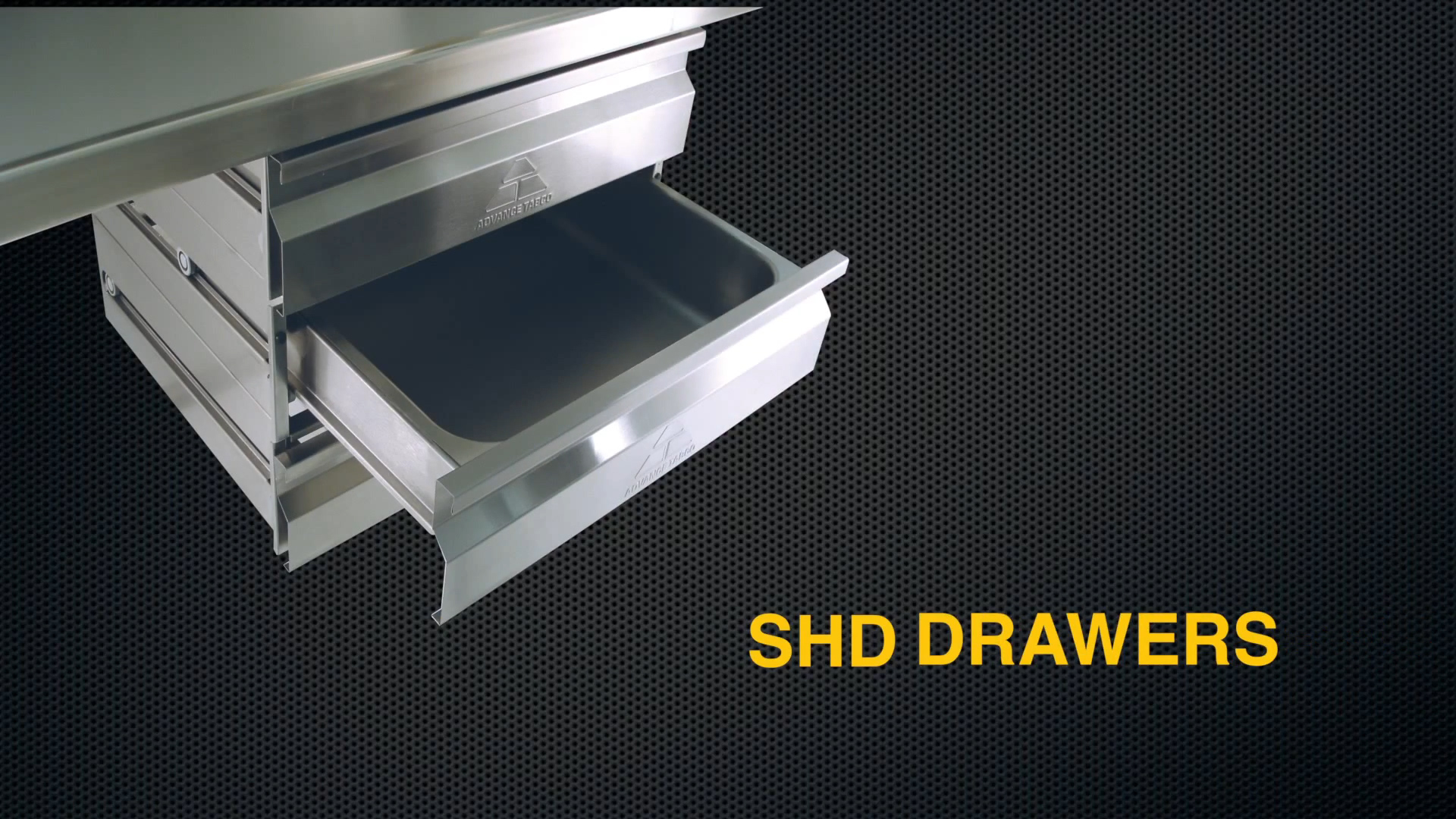

Advance Tabco SHD Drawers: Installation

Advance Tabco SHD Drawers: Installation

Do you have an Advance Tabco work table and need more storage? Add an Advance Tabco SHD drawer- it's easy! The welded drawer brackets are standard for all Advance Tabco work tables, and the #TA-90 can be added to non-Advance Tabco work tables for drawer installation.

Before installing, make sure you have all necessary components. These include (1) outer drawer chassis, (1) inner drawer chassis, (1) stainless steel drawer pan, (4) 1/4-20 x 1/2" bolts with nuts, and (2) 7/16" open-end wrenches.

For easy installation, turn the work tables upside down. Next, extend the inner drawer chassis and remove the drawer pan. Then remove the inner drawer chassis, install the outer chassis to the underside of the work table, align the mounting holes, and use the nuts and bolts to secure the drawer to the work table.

To install the inner drawer chassis, align the rear inner chassis bearing with the flange of the outer chassis. Extend the inner drawer chassis fully, and insert the stainless steel drawer pan.

Copy and paste the embed code above.

Do you need more storage space with your Advance Tabco worktable? Watch this quick video to see step-by-step instructions for installing SHD drawers!

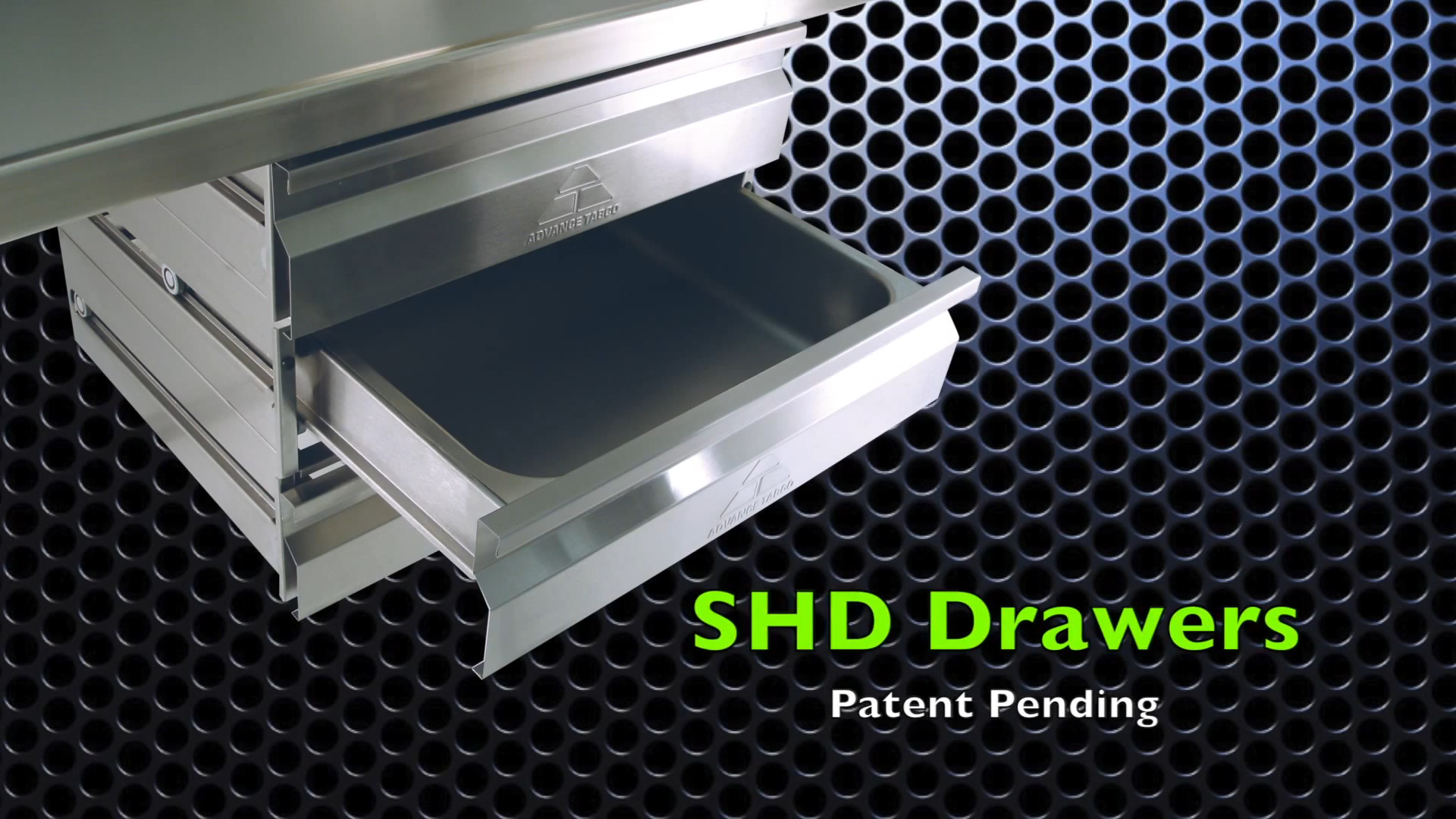

Advance Tabco SHD Drawers: Overview

Advance Tabco SHD Drawers: Overview

The Advance Tabco SHD drawers include many great features to keep your work station organized. Noise-reducing gliders help limit unnecessary distractions in the kitchen, and the self-closing design helps simplify your tasks, especially when hands might be full. These drawers include a removable insert that's easy to clean and NSF listed. They're stackable to maximize storage while still leaving a small footprint, and the 150 lb. capacity allows you to conveniently store any supplies you might need during food preparation.

These drawers glide with ease and have integrally welded drawer sides which help prevent bending, snapping, or breaking. Additionally, a safety stop tab prevents the drawer from being pulled all the way out and breaking.

The welded brackets are standard for all Advance Tabco work tables, and the #TA-90 bracket allows the drawers to be mounted on tables that you might already have on location.

Copy and paste the embed code above.

This informative video provides you with an overview of the design features and benefits of Advance Tabco SHD drawers!

Specs
Length 22 1/2 Inches
Width 17 1/4 Inches
Height 6 1/8 Inches
Interior Length 20 Inches
Interior Width 20 Inches
Interior Height 5 Inches
Made in America Yes
Material Stainless Steel
NSF Listed Yes
Number of Drawers 1
Type Drawers

Details

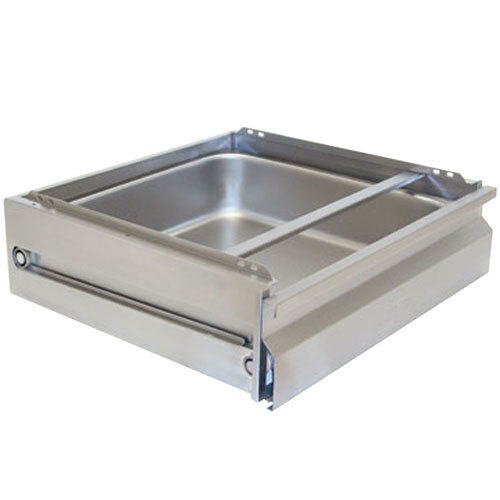

This Advance Tabco SHD-2015 stainless steel drawer unit has a 24 5/8" front plate and comes with a removable, stainless steel 20" x 15" x 5" inset. The SHD-2015 also has revolutionary, integral door slides, a self-closing mechanism for quieter action, and "safety-stops" to ensure that the drawer isn't pulled out too far. The SHD-2015 can be stacked to create tier drawers.

Overall Dimensions:
Length (front): 22 1/2"
Width: 17 1/4"
Height: 6 1/8"

Interior Dimensions:
Length: 20"
Width: 20"
Height: 5"

Because this item is not stocked in our warehouse, processing and transit times will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order once it is placed.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.
