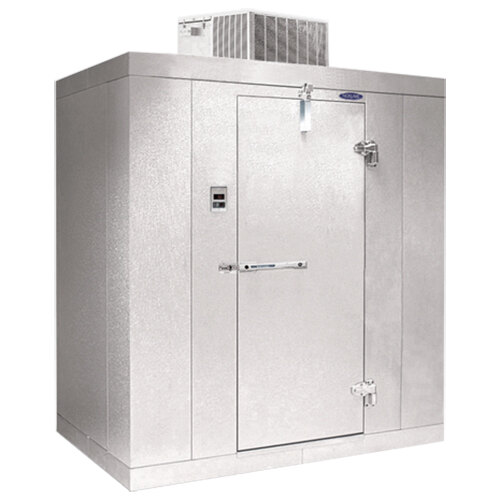

Nor-Lake KLB88-C Kold Locker 8' x 8' x 6' 7" Indoor Walk-In Cooler

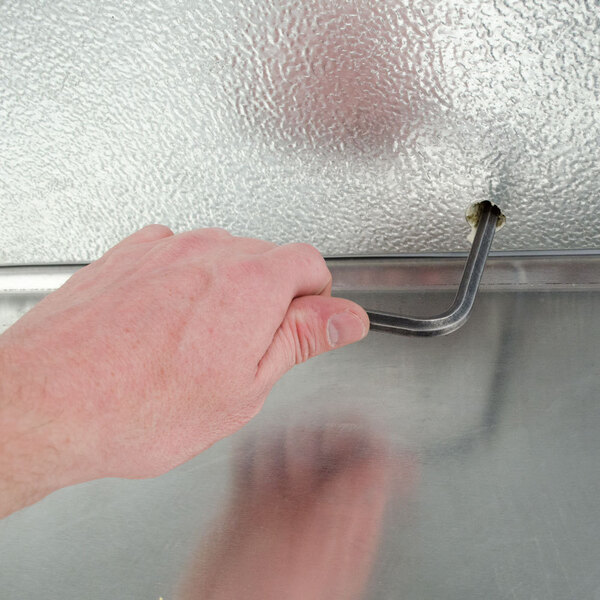

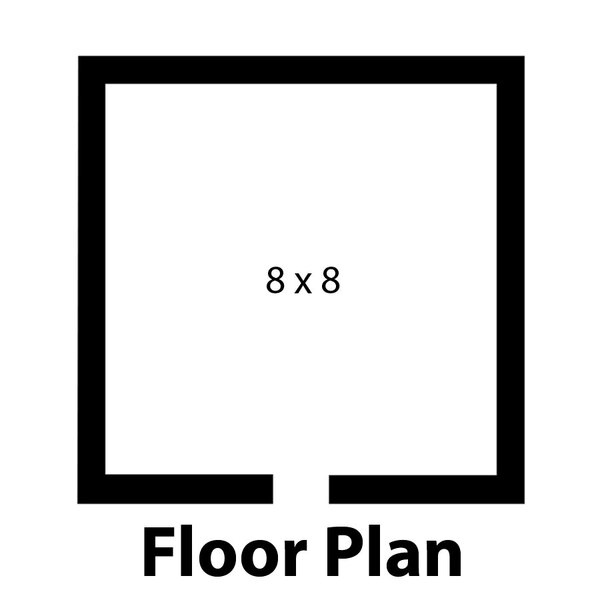

Installing your Nor-Lake Kold Locker is fast and easy with just three people and 15 minutes. Here, we show you just how easy it really is. Make sure to keep the included product manual handy for detailed instructions on each step. Take the time to follow the steps explicitly. Start by positioning the foamed walk-in floor panels in the desired location. Secure with the included hex wrench using the technique outlined in the product manual. Next, it's time to install the first corner panel. Notice that the panel is labeled "Top" along with a part number indicating that when the panel is in its proper position, the labeled end will be up. Notice, also, that the section latch access holes on the vertical edge of the panel are always on the interior of the panel. Position the corner panel in the proper location on the walk-in floor and flush the corner panel with the corner of the floor panel in both directions. Lock it securely to the floor panel. Select the next panel as indicated on the floor plan and position it on the floor close enough to the first panel installed so that section latch engagement is possible. Making sure that the two panels are perfectly aligned at the TOP EDGE and that the VERTICAL JOINT of the two panels are perfectly flush, turn the section latches on the vertical edge of the panel until they are completely engaged. Insist that the top edges of the adjoining panels are aligned perfectly and verify with a level. If misalignment is encountered, merely lift the lowest panel edge while locking to achieve alignment and, when all latches are engaged, permit the locked panels to resume their normal position on the walk-in floor. Continue erecting panels according to the part numbers shown on the floor plan, and follow, explicitly, the technique described for panel alignment. Once all of the walls are up, with the exception of the last remaining cornel panel and the front/door panel, it's time to start on the ceiling. Start by placing the condenser atop the proper ceiling panel as outlined in the floor plan. Secure properly before proceeding. Lift the ceiling panel/condenser up into position above the side panels. Next, bring the front/door panel into position and secure. The last remaining corner panel should be placed into position once the front/door panel is positioned, and finally, the last remaining ceiling panel should be positioned. Secure all unsecured panels at this time and seal properly. Then plug the unit into designated wall receptacle and you're done!
