This product is no longer available. We've left this page up for reference only.
- 208V, 3 Phase, 12 kW
- Pedestal stationary base that can be secured to the floor
- 2/3 steam jacketed design for faster heat-up and cook times
- Hemispherical design for superior heat circulation
- Safety valve, low water light, and low water shut off for safety
- Self-generated closed steam system and manual controls
- Stainless steel construction and control housing
- Temperature range of 165-275 degrees Fahrenheit
- Shipping Weight
- 250 lb.
- 23 3/4 Inches
- 33 1/4 Inches
- 38 Inches
- 33.3 Amps
- 60 Hertz
- 3 Phase
- 208 Volts
- 12 Kilowatts
- 20 Gallons
- Capacity per Compartment
- 20 Gallons
- Draw Off Valve
Made in America
- Installation Type
- Floor Model
- Kettle Jacket
- Plug Type
- Power Type
- Temperature Range
- 165 - 275 Degrees F
- Single Kettle

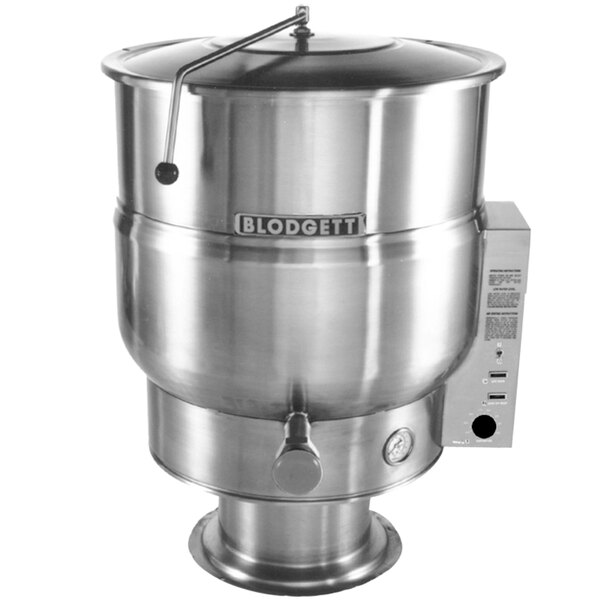

Blodgett KPS-20E208/3 Details
Increase your production capabilities while saving energy and labor with this Blodgett KPS-20E 20 gallon stationary pedestal base electric kettle! Boasting 12 kW of heating power and a 20 gallon capacity, this kettle allows you to prepare large batches of your signature soups, stews, or pasta without the hassle of ranges or stock pots. The stainless steel pedestal base design features four 7/16" evenly spaced holes, allowing you to secure it to the floor in your kitchen. And, the 304 type stainless steel construction is highly stain and corrosion resistant, which makes cleanup much easier.
Thanks to the 2/3 jacketed design, this kettle has 1-2 times more heat transfer surface area than that of the same sized stock pot. This means you'll have faster heat-up and cook times, which increases production. Plus, faster cook times mean less energy used, so your utility bills will be lower. And, with more even heating and precise temperature control ranging from 165-275 degrees Fahrenheit, there is less need for frequent stirring or "pot watching." To further increase efficiency, a hinged cover minimizes evaporation and keeps the heat inside the kettle. The hemispherical bottom ensures superior heat circulation, which also helps keep the heat inside, rather than in the surrounding kitchen area. Your employees will have a more comfortable working environment, and because of the safety valve, low water light, and low water shut off mechanism, they'll also be safer. For ease of use, the kettle has a 2" tangent draw off, so you can quickly empty the contents after they've been cooked. It requires a 208V, 3 phase electrical connection.
Left to Right: 23 3/4"
Front to Back: 33 1/4"
Capacity: 20 gallon
This item meets the standards imposed by the Canadian Standards Association (CSA) for use in the United States of America and Canada.
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Made in America
This item was made in the United States of America.
ASME U Stamp
This item meets standards imposed by ASME as part of the BPVC certification program that ensures the item conforms to the rules governing the design, fabrication, assembly, and inspection of boiler and pressure vessel components.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
