$23,573.00/Each

This product is no longer available. We've left this page up for reference only.

Usually Ships in 2-4 Weeks from manufacturer

Lead times vary based on manufacturer stockEstimated shipping time tooltip

Product Overview

  • Liquid propane, 100,000 BTU
  • 40 gallon capacity
  • 10 gauge stainless steel pan with a polished interior and coved corners
  • 3/4” triple-ply aluminum core cooking surface
  • 1/2 hp hydraulic tilting mechanism for accurate and smooth tilting
  • Welded stainless steel legs with front bullet feet and rear flanged feet
  • Controls mounted in cabinet base; temperature range of 160-445 degrees Fahrenheit
  • Spring-assisted hinged stainless steel cover with a handle
UPC Code:400011997052
View all Blodgett Tilt Skillets / Braising Pans

Blodgett BCH-40G LP Specs

Quantity
1/Each
Shipping Weight
875 lb.
Width
48 Inches
Depth
39 1/2 Inches
Height
40 1/4 Inches
Hertz
60 Hertz
Phase
1 Phase
Voltage
115 Volts
Capacity
40 Gallons
Cover Type
Hinged
Features
Made in America

NSF Listed

Power Tilt
Gas Inlet Size
3/4 Inches
Installation Type
Floor Model
Plug Type
Hardwire
Power Type
Liquid Propane
Style
Tilting
Temperature Range
160 - 445 Degrees F
Total BTU
100,000 BTU
Type
Skillets

Customer questions about this product

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.

Ask your own question!

Blodgett BCH-40G LP Details

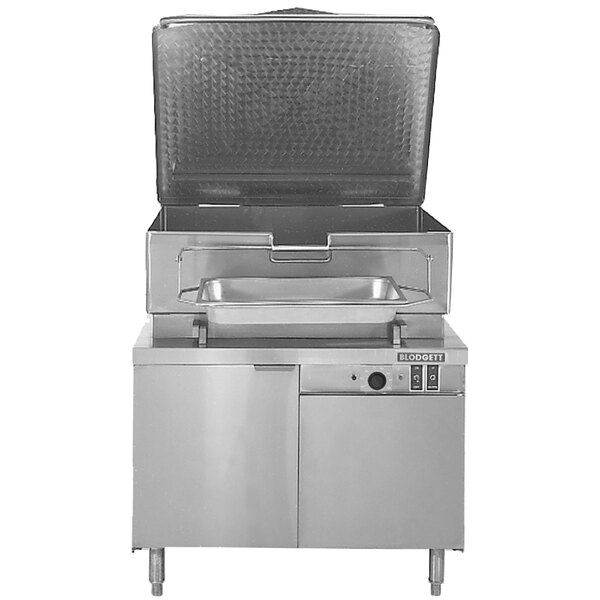

Cook large portions of ground meats, sauces, vegetables, and more with the BCH-40G liquid propane 40 gallon hydraulic tilt braising pan / tilt skillet! This 100,000 BTU unit features a large 40 gallon capacity that allows you to create large batches of seared, grilled, sauteed, or simmered foods without the mess and inefficiency of stockpots and ranges. Thanks to a 1/2 hp motor that drives a heavy duty hydraulic tilting mechanism, emptying the pan is even easier and safer than ever.

This 10 gauge stainless steel braising pan boasts a 3/4" triple-ply aluminum core cooking surface with a polished interior and coved corners for even heat distribution and easy cleanout. Plus, a removable pour strainer and no-drip condensate guide combine to further ease your cleaning and emptying experience.

Base-mounted controls, located on the front of the unit for easy access, offer a 160-445 degrees Fahrenheit temperature range. In addition, the high-temperature cut-off, cook indicator light, thermostat, and power switch all make it easy for your employees to operate this tilt skillet. Adjustable front bullet feet with rear flanged feet allow this braising pan to maintain proper leveling on any surface. A 115V electrical connection is required to power the controls.

Overall Dimensions:
Left to Right: 48"
Front to Back: 39 1/2"
Height: 40 1/4"
Capacity: 40 gallons

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • CSA Design Cert

    CSA Design Cert

    This item has been certified by the Canadian Standards Association (CSA) and meets applicable U.S. standards.

  • 3/4" Gas Connection

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection to be installed by a professional.

  • CSA Blue Flame

    CSA Blue Flame

    This item has been certified by the Canadian Standards Association (CSA) and meets applicable Canadian standards for appliances using gas or petroleum fuel.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

Resources and Downloads for
Blodgett BCH-40G LP

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Please note there is an 8% administrative warranty fee and potential for additional export fees for units that are shipped outside of the United States
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
