Product Overview

  • 2 unit system with 85 lb. oil capacity per tank
  • Solid state digital controls with 3 melt modes each
  • Fast recovery that reacts within 2 degrees Fahrenheit of set temperature
  • 1-touch button activates KleenScreen filtration system
  • Each fryer equipped with ribbon style heating elements for efficiency
  • Stainless steel construction for outstanding durability
  • Two sets of twin fry baskets with plastic coated handles for comfort
  • 208V, 3 phase, 24 kW per tank
UPC Code:400012115035

Vulcan 2ER85DF-1 Specs

Quantity
1/Each
Shipping Weight
700 lb.
Width
42 Inches
Depth
34 3/8 Inches
Height
39 7/16 Inches
Fry Pot Width
19 1/2 Inches
Fry Pot Depth
18 Inches
Amps
67 Amps
Hertz
60 Hertz
Phase
3 Phase
Voltage
208 Volts
Wattage
48 Kilowatts
Cabinet
Stainless Steel
Capacity
170 lb.
Capacity per Fry Pot
85 lb.
Element Style
Ribbon
Features
Built-In Filtration System  Energy Star Qualified  Made in America  NSF Listed
Number of Fry Baskets
4
Number of Fry Pots
2 Fry Pots
Plug Type
Hardwire
Power Type
Electric
Split Pot
Without Split Pot
Temperature Range
200 - 390 Degrees F
Type
Electric Floor Fryers

Customer questions about this product

Can I modify this item?

Webstaurant Store offers certain optional modifications for this item. If you are interested in more information for modifying this unit, please fill out this form, Special Order Request Form, and a member of our Custom Quote team will be in touch in 1-2 business days!

Ask your own question!

Vulcan 2ER85DF-1 Details

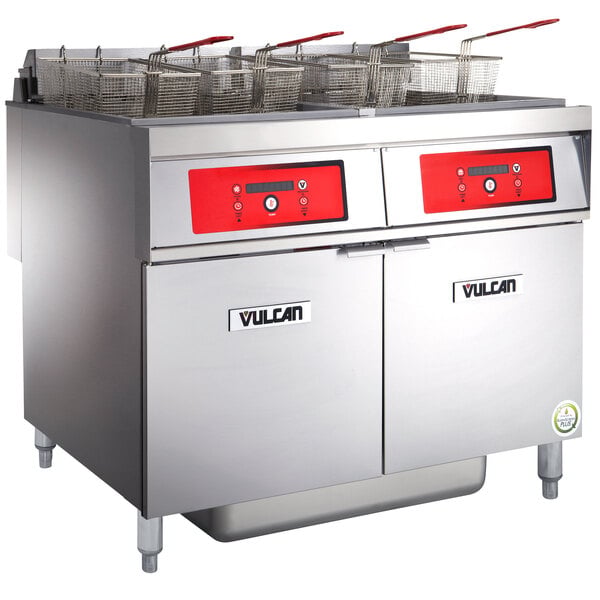

Deliver basket after basket of freshly fried foods to your customers with this Vulcan 2ER85DF-1 170 lb. 2 unit electric floor fryer system with digital controls and KleenScreen filtration! With an oil capacity of 170 lb. total, this unit is packed with great benefits to make your frying experience as easy and efficient as possible. Boasting a 19 1/2" x 18" frying area per tank, this system delivers 48 kW of power and comes with 2 twin fry baskets per fryer, so you can get to frying as soon as you fill the tank!

Equipped with digital controls, this system features 2 countdown timers, compensating time adjustment, and an automated temperature control boil-out mode on each fryer. The temperature can be adjusted from 200-390 degrees Fahrenheit, and the controls allow the unit to react within 2 degrees Fahrenheit of the set temperature, which provides faster recovery and improves overall performance. Three selectable melt modes allow you to gradually heat up your oil and help preserve its life, which conserves energy and proves to be a very efficient addition to your equipment lineup.

This system features low watt density ribbon style heating elements for fast, thorough heating. Plus, to ensure safety for all employees, a high limit control shuts off the electrical connection if the oil temperatures get too high. For ultimate oil preservation, the KleenScreen filtration system aids by removing impurities, which improves the quality and taste of your product. A 1 1/4" full port drain valve makes oil removal a quick and hassle-free process.

Both the cabinet and each fry tank are comprised of rugged stainless steel that's designed to withstand the hustle and bustle of a busy commercial kitchen. To aid in the cleaning process, the unit comes with a tank brush and clean out rod. A set of four 6" adjustable legs provide stability on any surface. This unit requires a 208V, 3 phase electrical connection for operation.

Overall Dimensions:
Left to Right: 42"
Front to Back: 34 3/8"
Height: 39 7/16"
Frying Area (per unit): 19 1/2" x 18"
Oil Capacity (per unit): 85 lb.

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

Need Parts & Accessories?

Show replacements and accessories for Vulcan 2ER85DF-1 today!

Resources and Downloads for
Vulcan 2ER85DF-1

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
