Product Overview

  • Holds up to (8) 3 gallon ice cream tubs
  • Hinged acrylic dipping compartment lid with full length handle
  • Rear air intake & discharge allows for full front of cabinet graphics
  • Low profile design enhances product visibility making it perfect for children
  • 115V
UPC Code:400010488322

Master-Bilt DD-46L Specs

Quantity
1/Each
Shipping Weight
407 lb.
Width
48 1/4 Inches
Depth
27 1/2 Inches
Height
50 Inches
Amps
7.5 Amps
Hertz
60 Hertz
Phase
1 Phase
Voltage
115 Volts
Cabinet Type
Merchandising
Capacity
9.6 cu. ft.
Compressor Location
Bottom Mounted
Container Display Capacity
8 Cans
Container Storage Capacity
4 Cans
Door Style
Swing
Door Type
Glass
Features
Low Profile Design  Made in America  NSF Listed
Front Style
Flat
Horsepower
1/2 HP
Number of Doors
1 Door
Plug Type
NEMA 5-15P
Refrigerant Type
R-290
Temperature Range
5 Degrees F
Total Container Capacity
12 Cans
Type
Dipping Cabinets

Master-Bilt DD-46L Details

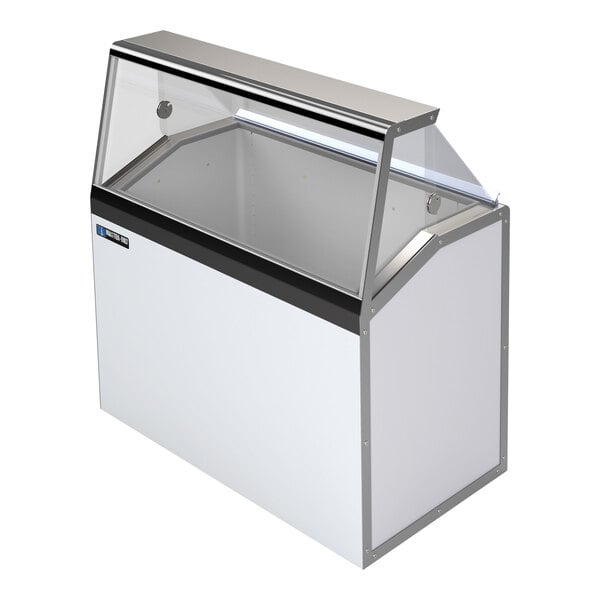

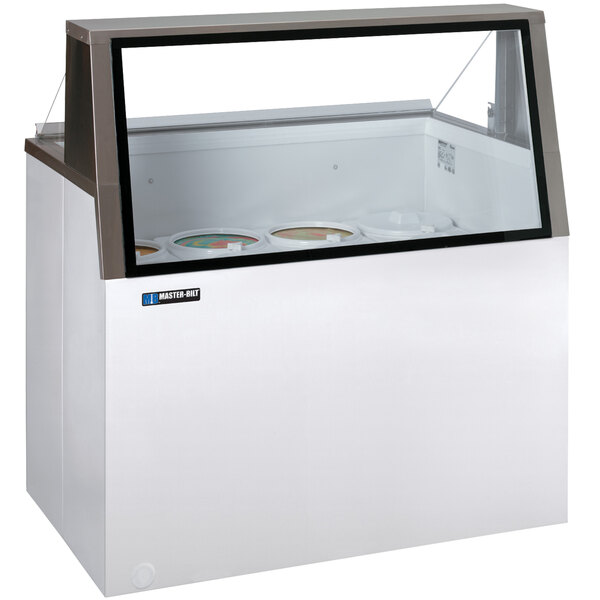

The low glass Master Bilt DD 46L ice cream dipping cabinet holds 8 standard 3 gallon ice cream cans for effective merchandising and dipping, with room for 4 more beneath the display in storage! The low glass design makes your ice cream even more visible than in standard dipping cabinets, to further tempt prospective customers! Brilliant fluorescent lighting and an attractive tempered curved glass viewing window ensure that your delicious ice cream looks its best.

This low glass ice cream dipping cabinet features 2 1/4" of foamed-in-place urethane insulation, plus a cold wall evaporator design and a 1/2 hp compressor that maintain internal temperatures between -5 and 5 degrees Fahrenheit. Its stainless steel serving deck, heavy duty epoxy-coated wire can support racks and an integrated drain with a garden hose connection ensure years of dependable service and easy cleaning.

The Master-Bilt DD46L low glass ice cream dipping cabinet requires a 115V electrical connection.

Overall Dimensions
48 1/4"W x 27 1/2"D x 50"H

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

Resources and Downloads for
Master-Bilt DD-46L

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
