Equip by T&S 5GF-8P-WS Water Station with Drip Pan and Push Back Glass Filler - 9 3/8" High Pedestal
- 1/2" NPT male inlet; 1 1/4" drain
- Lexan blue handle and outlet
- 18 gauge stainless steel drip pan
Equip by T&S
|Height||9 3/8 Inches|
|Cutout Width||10 1/2 Inches|
|Drip Pan Width||9 7/8 Inches|
|Cutout Depth||5 Inches|
|Drip Pan Depth||4 5/16 Inches|
|Drip Pan Height||1 1/2 Inches|
|Installation Type||Deck Mounted|
|Made in America||Yes|
|Nozzle Clearance||8 Inches|
|Number of Faucets||1|
|Water Inlet Size||1/2 Inches|
Make your kitchen's source of potable water stand out with this Equip by T&S 5GF-8P-WS water station! Featuring a push-back glass filler with a Lexan blue outlet and lever, this station immediately lets employees know where to obtain the purest water for refreshing beverages.

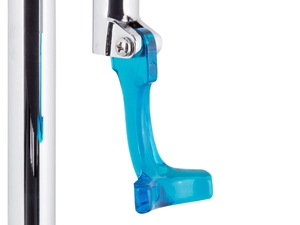

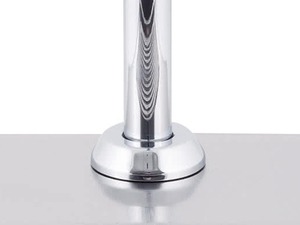

The 5GF-8P-WS glass filler is 9 3/8" tall with an impressive 8" of clearance to accommodate everything from petite water glasses to frosty pitchers. Boasting a self-closing lever and volume control outlet, the unit's water flow can be easily adjusted with a screwdriver for maximum water conservation! For added convenience, a 12 5/8" x 10 5/8" stainless steel deck helps to keep surrounding areas dry.
This water station comes complete with a 9 7/8" x 4 5/16" drip pan with a 1 1/4" drain. A cut-out size of 10 1/2" x 5" is suggested for installation; mounting screws are included.
Drip Pan Basin Dimensions
Left to Right: 9 7/8"
Front to Back: 4 5/16"
Height: 1 1/2"
WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made in America
This item was made in the United States of America.
This item meets the standards imposed by the Canadian Standards Association (CSA).
