$568.80/Each

Add this item to your cart. (You can remove it at any time.)

Accessories & Options

  • NSF Listed

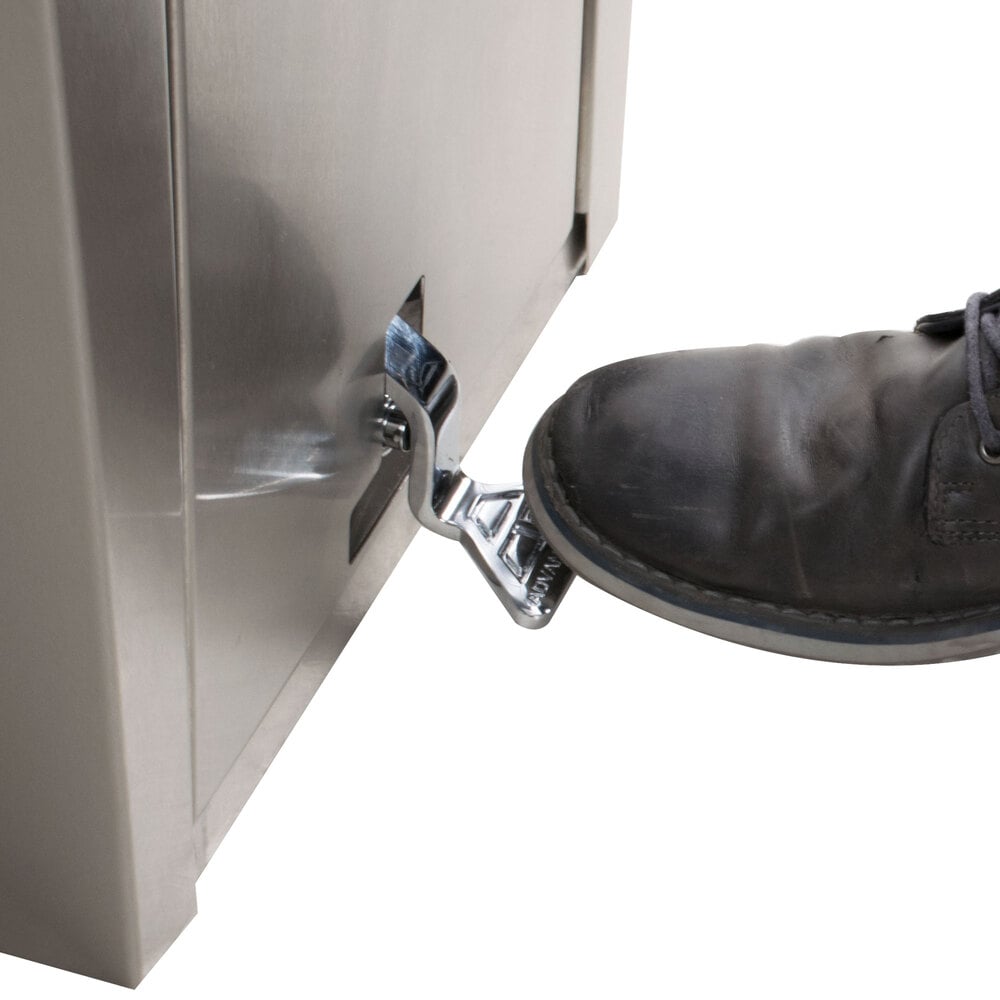

  • Foot pedal operation
  • Hands free splash faucet included
  • Made in America
Item:
1097PS90
Units:
Each
Shipping:
Usually Ships in 1 Business Day
When will I receive my Item?
MFR Item:
7-PS-90

Companion Items

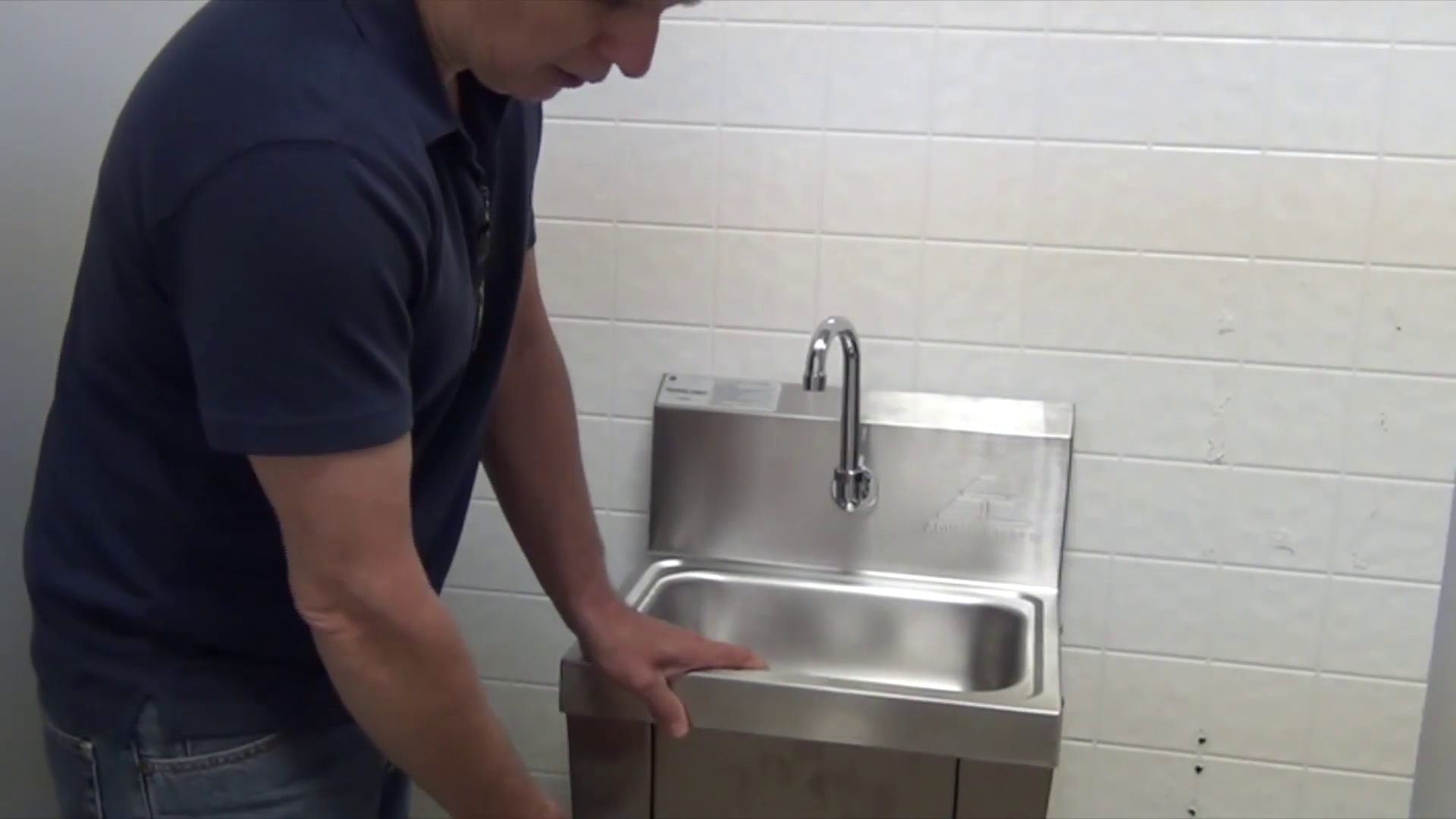

Advance Tabco 7-PS-90 Mounting Installation

Advance Tabco 7-PS-90 Mounting Installation

The first step in mounting the unit is to install the provided fall clip at the necessary height to allow for engagement with the turn down on the rear side of the sink. Install the sink to the top of the mounting clip as shown, ensuring it is firmly in place. Please note that there are additional mounting holes in the back of the unit if further security is desired.

Copy and paste the embed code above.

This brief video gives you a few mounting tips for installation of your Advance Tabco 7-PS-90 hand sink!

Advance Tabco 7-PS-90 Plumbing Installation

Advance Tabco 7-PS-90 Plumbing Installation

Upon arrival only one connection is required on the 7-PS-90, as all other connections have already been made before shipping of the unit. One half inch to one half inch straight MP adapter needs to be purchased and installed, as it is not supplied by Advance Tabco. This adapter should be installed to the bottom of the vertical ball valve on the bottom of the heater as shown. The only flex hose that needs to be purchased and installed is a 3/8 flex hose, which should be attached to the brass MP adapter that was just installed, and tighten with a wrench. Next install the other end of the flex hose to the cold water supply and tighten with a wrench.

Copy and paste the embed code above.

Learn how to correctly hook up the plumbing when installing your Advance Tabco 7-PS-90 hand sink by watching this helpful video!

Specs
Length 17 1/4 Inches
Width 15 1/4 Inches
Height 42 Inches
Bowl Depth 5 Inches
Bowl Front to Back 10 Inches
Bowl Left to Right 14 Inches
Faucet Included Yes
Made in America Yes
Material Stainless Steel
Metal Gauge 20 Gauge
NSF Listed Yes
Number of Compartments 1
Stainless Steel Type Type 304

Details

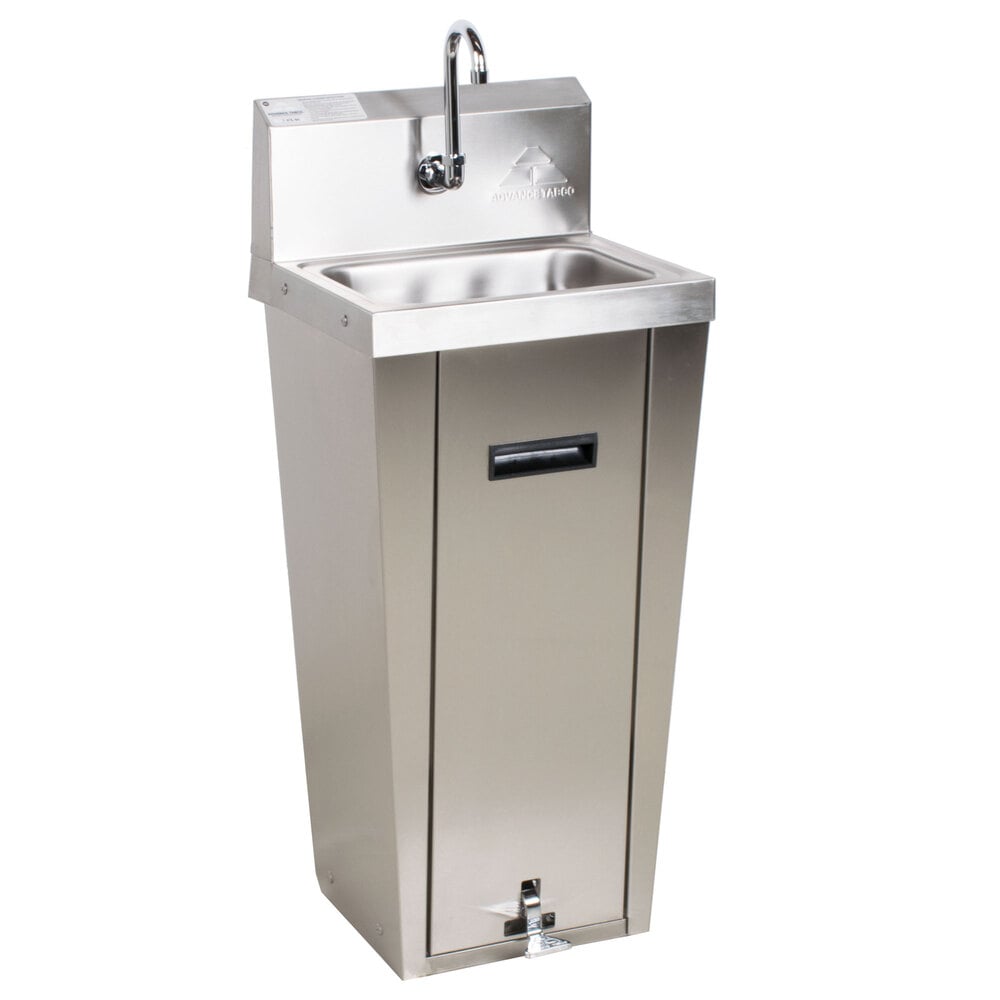

Thanks to its simple foot pedal operation and hands free splash mounted faucet, this Advance Tabco 7-PS-90 hand sink with pedestal base helps prevent the transfer of germs and bacteria, making it an ideal hand washing station for commercial kitchens and industrial locations.

The Advance Tabco 7-PS-90 hands free hand sink is made from one sheet of 20 gauge type 304 series stainless steel for a seamless design that protects against dirt and debris build up. Keyhole style brackets allow for easy, flush-to-wall installation and provide unbeatable support and stability.

The Advance Tabco 7-PS-90 hands free hand sink with pedestal base also features an easily removable front panel for quick access to the unit's hidden plumbing components. NSF Listed. Consult the Specification Sheet for additional details and installation information.

Overall Dimensions:
17 1/4" Left to Right
15 1/4" Front to Back
42" High

Compartment Dimensions:
14" Left to Right
10" Front to Back
5" Depth

Also known as 7 PS 90, or 7PS90.

Awards

Best in Class

Certifications

NSF Listed Made in America

Downloads

Spec Sheet Specsheet Warranty Warranty
